Three Needles Coil Winding Machine 380v Voltage For Brushless Motor Stator

NINGBO NIDE MECHANICAL EQUIPMENT CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Three Needles Coil Winding Machine 380v Voltage For Brushless Motor Stator

Brand Name : NIDE

Model Number : ND-SW03

Certification : none

Place of Origin : China

MOQ : 1 set

Price : negotiable

Supply Ability : 120 sets per year

Delivery Time : 60 working days

Packaging Details : Wooden case which is suitable for sea transportation

Payment Terms : T/T

Prouduction name : stator coil winding machine

Application : BLDC/ brushless motor stator coil winding

Winding method : 3 needle winding

color : customized

type : full automatic

Voltage : 380V

Weight : about 350kg

After-sales service : oversea service

Contact Now

BLDC stator three needles coil winding machine for brushless motor stator


Introduction:

The needle winding machine is suitable for BLDC motor stator winding, three needles winding, winding process is automatically done, high efficiency, safety, can do multi strands wire parallel winding.


The BLDC needle winding machine has remote diagnosis function


Specification:

Wire dia.:0.15-0.7mm(can be customized)
Winding speed:50-1100 r/min
Winding method:three needle winding
Stack- length:5-60mm
Stator ID:10-50mm
Stator OD:30-80mm
Air pressure:0.5MPa~0.7 MPa
Power:380V/50HZ, three phase four wires
Total power:8.5 KW
Dimension:700*900*1650mm
Wegit:≈ 350 Kg

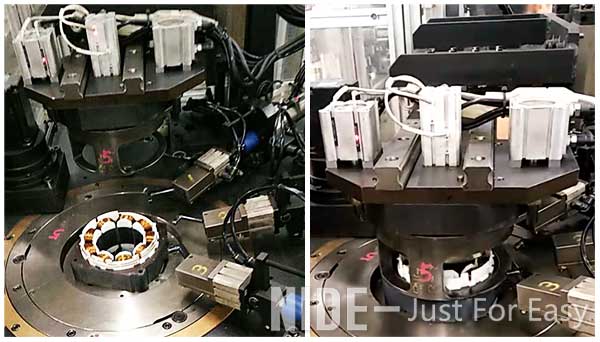

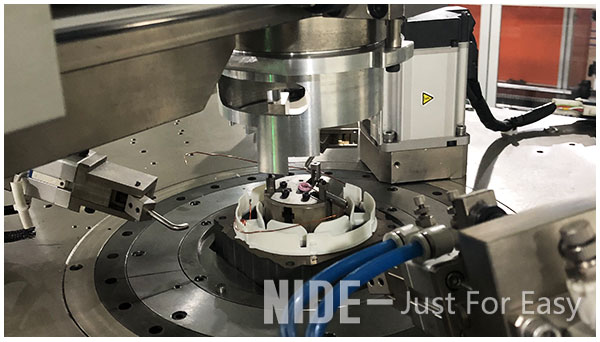

BLDC needle winding machine Picture show

needle-winding-machine-91

stator needle winding machine coil winding machine bldc winding machine
