Automatic Big Motor Stator Wire Making Machine of High Performance

NINGBO NIDE MECHANICAL EQUIPMENT CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Automatic Big Motor Stator Wire Making Machine of High Performance

  • 1
  • 2

Brand Name : Nide

Model Number : RX6-1200B

Certification : None

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Delivery Time : 35 working days

Packaging Details : Wooden case suitable for sea transportation

Supply Ability : 180 sets per year

Name : Wire making machine

After-Sales Service : Overseas Service Center Available

Working station : Single working station

Customized service : Available

Function : wind wire into coils

Dimension : 2300mm X2200mm X2000mm

Contact Now

Automatic Big Motor Stator Wire Making Machine of High Performance


Description:

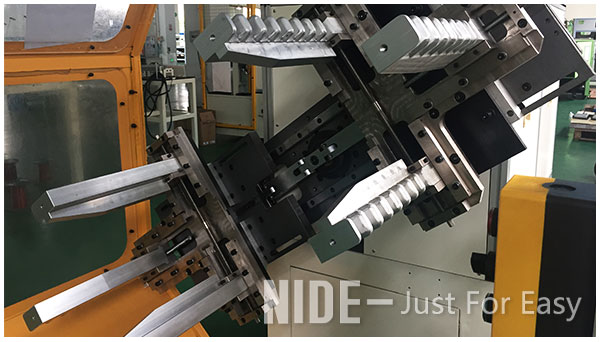

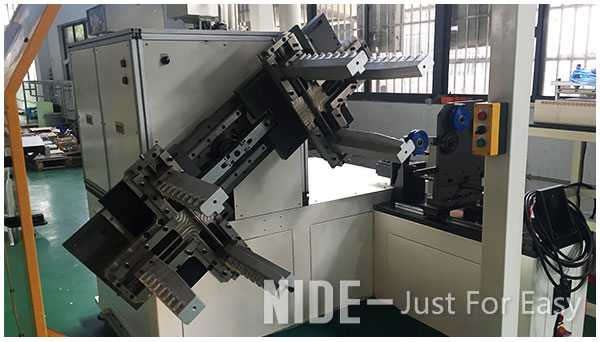

Adopts special purpose controller to realize the function of auto winding, auto arraying, slot acrossing, auto getting through wax tube and output setting, etc. This machine is suitable for winding the coil for big power motor. The tooling could be auto extend and retract. Therefore, it is no need to discharge the tooling when taking out the finished coil. Thus it can reduce the labor and improve the effciency. It could produce different dimension coils which is for same series size stator by adjusting the tooling, and tension is adjustable too.

Technical data:

Swing dia

≤1200mm

Effective length of the tooling≤850mm
Parallel wire no.≤40pcs

Wire diameter

OD 0.4~1.5mm

Wire arraying width

850mm

Power

220V- 50/60HZ, 5.5Kw

Weight

1100kg

Air pressure

0.4~0.6mpa

Dimension

2300mm X2200mm X2000mm

Information needed for big motor stator wire making machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3. Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.


Competitive advantages:

Variety of application, easy operation.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
We could customize machine for our customer as per their requirement.

We have Overseas Service Center.

big coil winding machine
