Servo Motor Wedge Cutting , Forming And Inserting Machine Fully Automatic

NINGBO NIDE MECHANICAL EQUIPMENT CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Servo Motor Wedge Cutting , Forming And Inserting Machine Fully Automatic

  • 1
  • 2

Place of Origin : China

Brand Name : Nide

Certification : None

Model Number : ND-LSI-2WB

MOQ : 1 set

Price : Negotiable

Packaging Details : Wooden case suitable for sea transportation

Delivery Time : 35 working days

Payment Terms : T/T, L/C

Supply Ability : 800 sets per year

Name : wedge inserting machine

Function : cut, form and insert wedge

Wokring station : One

Condition : New

Customized service : provided

Package : wooden case

Contact Now


Servo Motor Wedge Cutting , Forming And Inserting Machine Fully Automatic


Quick Detail:

1.This wedge inserting machine will automatically insert wedge into slots.

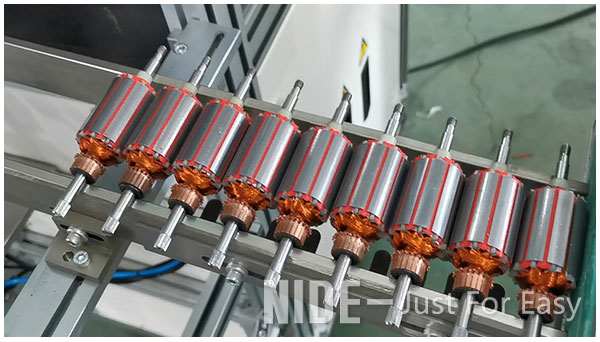

2. The machine is used for inserting wedge to armature slots.
3. it is easy to change the tooling.
4. PLC controlled.
5. It runs in high automation degree.
Competitive advantages:

This wedge inserting machine is easy for operation. It’s helpful for customer to reduce labor cost and improve production efficiency. And this machine can be equipped with an automatic feeding device to achieve a fully automatic operation. PLC and touch screen control.

Description:

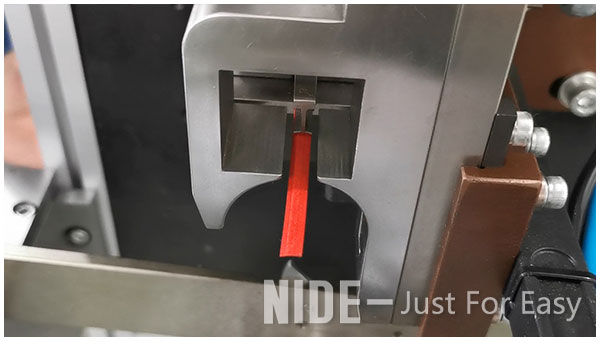

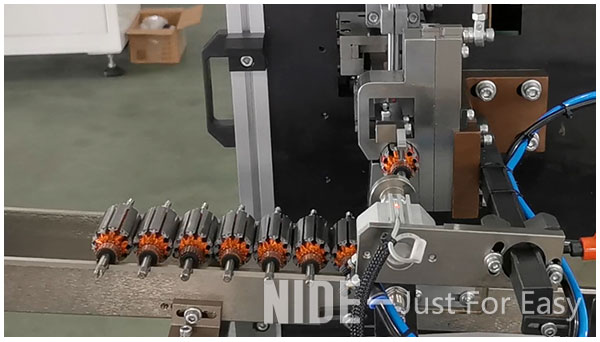

Rotor wedge inserting machine is used for inserting the wedge of rotor. Rotor wedge inserting machine is applied to the field of mass production for rotor, and it is easy to change the tooling. Moreover, the machine body is light and elaborating.The complete machine is controlled by the Siemens programmable controller (PLC), which is made in German. It runs in high automation degree. If only the rotor to be processed is placed on the feeding track, the machine will finish the work such as the rotor lifting, clamping, shaping of the insulating paper, cutting and inserting automatically.

Technical parameter

Item

Specification

Armature O.D

20~60mm

Armature stack length

20~60mm

Shaft O.D

3~17mm

Slot number

6~24 slots

Efficiency

7S/pc (if slot number is 12)

Air source

0.4~0.7MPa

Rated power

1.5KW

Voltage

AC220V, 50Hz


Function and feature

It is of high reliability to be under the control of Siemens PLC.
The electromechanical linkage device and the faults detection system is mounted.
Pneumatic workpiece clamping.
The English operation system is availble.

Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
